END-TO-END IoT FREIGHT VISIBILITY

IntelliSticker · MN-Cargo AI video · E-Lock

Secure every move of your cargo with device-level intelligence on a single unified platform.

MinRix combines IntelliSticker RFID labels, the MN-Cargo AI video terminal and the E-Lock — so you can prove integrity from source to final delivery.

Live condition & tamper alerts 360° AI video on the container door 4G · GPS / BeiDou lock tracking
Live corridor: Asia → EU 99.97% integrity
Illustrative sample data
IntelliStickerMN-CargoE-Lock
MN-Cargo video terminal
Container #MSCU 538 912
360° AI video · door events
Closed
Door
2
AI events today
Online
Connection
E-Lock: locked4G · GPS
Labels synced348 pallets
Door events: monitoring0 in route · ETA 13h
IntelliSticker
112k
MN-Cargo
3.4k
E-Lock online
1.9k
// IoT DEVICE SUITE

Precisely track what is shipped, how it's shipped and when it's opened

A device family that merges robust industrial hardware with cloud-native control.

Pick the form factor you need — the platform normalizes telemetry across every endpoint.
IntelliSticker SelectorFind your label in 3 questions Electronic Lock SelectorCompare 33 locks, seals and trackers

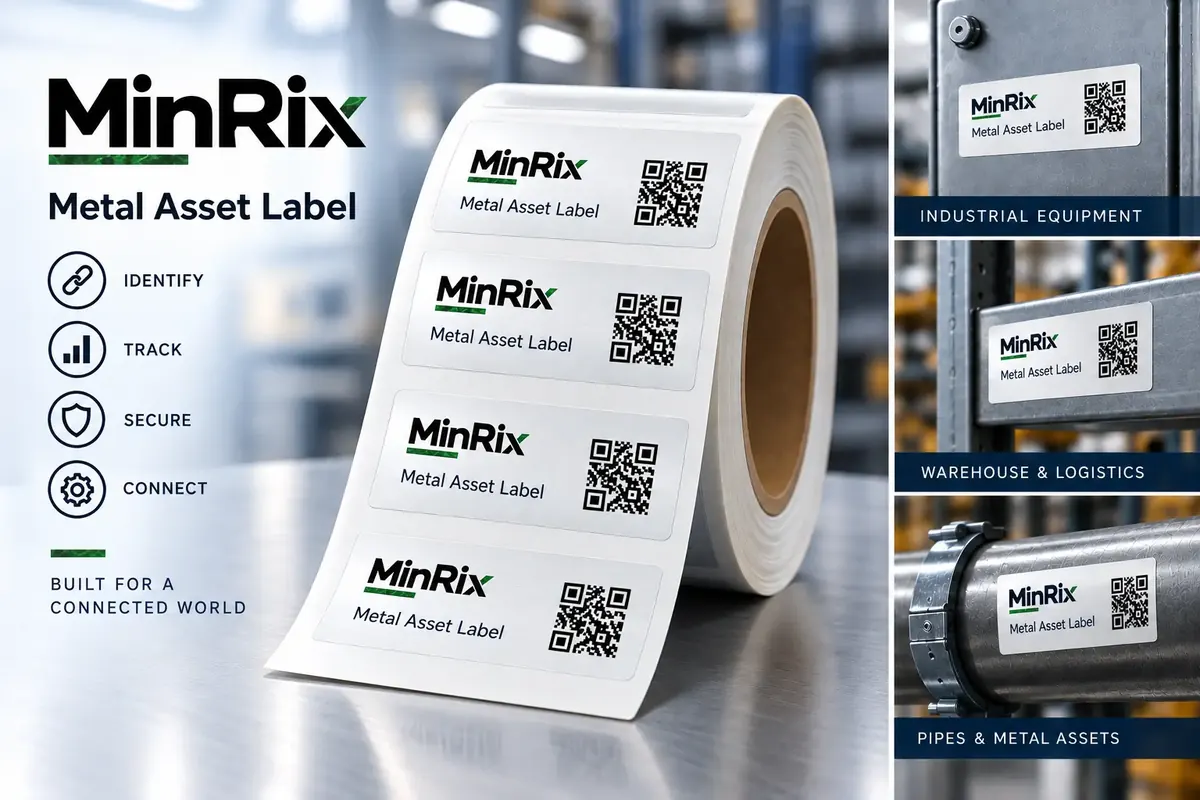

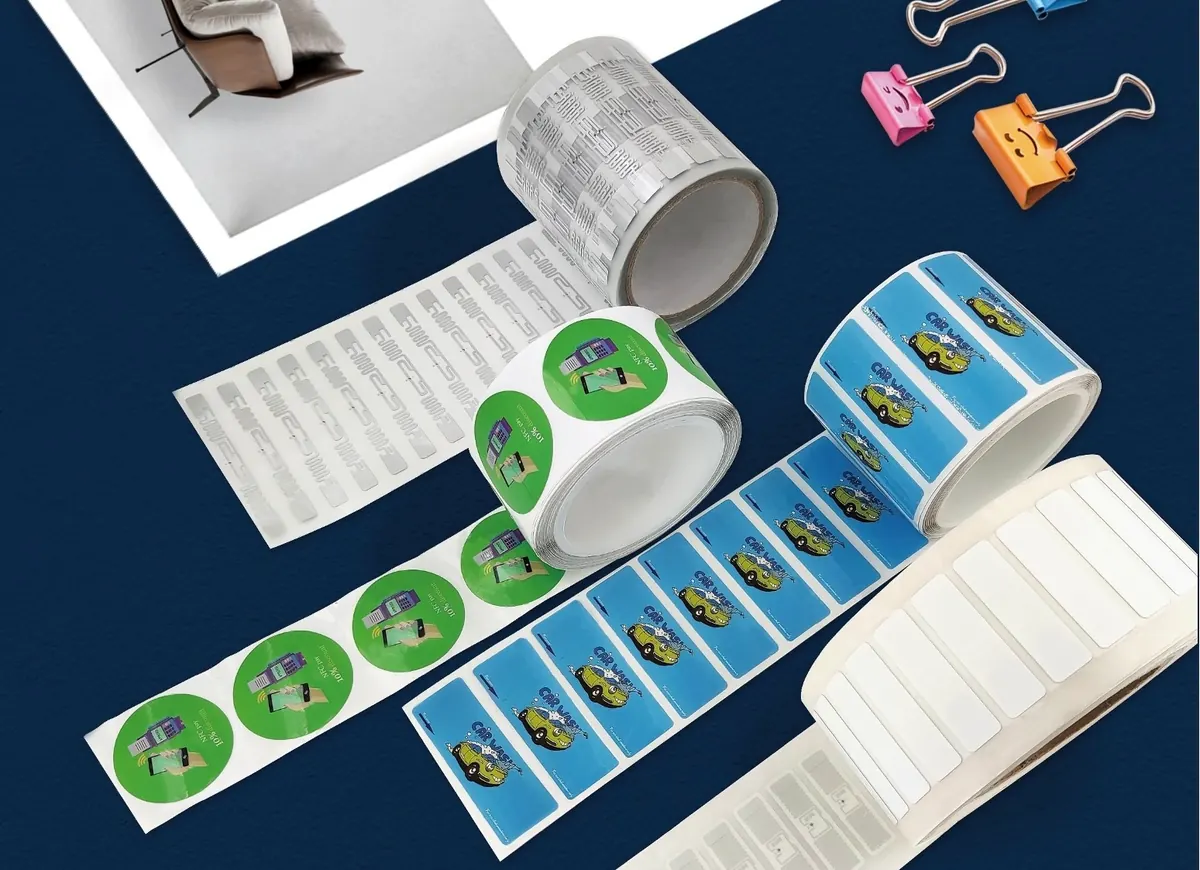

IntelliSticker — frictionless, scalable identity

Smarter than a label. Stronger than a barcode.

Passive UHF RFID (and NFC) labels made for your goods, in any size and shape. Each tag encodes an EPC plus lot and expiry data and can be read at portal speed — up to 400 tags per second — for instant reconciliation at receiving, cross-docking and yard operations without opening the container. Tamper-evident VOID, destructible and hologram versions protect brands against counterfeiting; the LUMID LED label adds a bright LED, so staff can see which carton or asset carries the tag.

400 tags / sec
Key specifications

Passive UHF · EPC Gen2v2 · memory EPC 128 / user 512 bit · read range up to 14 m · IP54, −20 → +70 °C.

EPC/Lot/ExpiryISO 18000-6CRoHS
Form factors

Any size to order, e.g. adhesive label 50×30 mm, hang-tag 80×20 mm, on-metal 60×40 mm, ruggedized 100×25 mm; also NFC, windshield, test-tube, jewellery and embedded tool tags; LUMID LED label 75×25×0.26 mm.

Any sizeTamper-evidentNFCOn-metalLED locate

Technical specifications

FeatureIntelliStickerLUMID LED Label

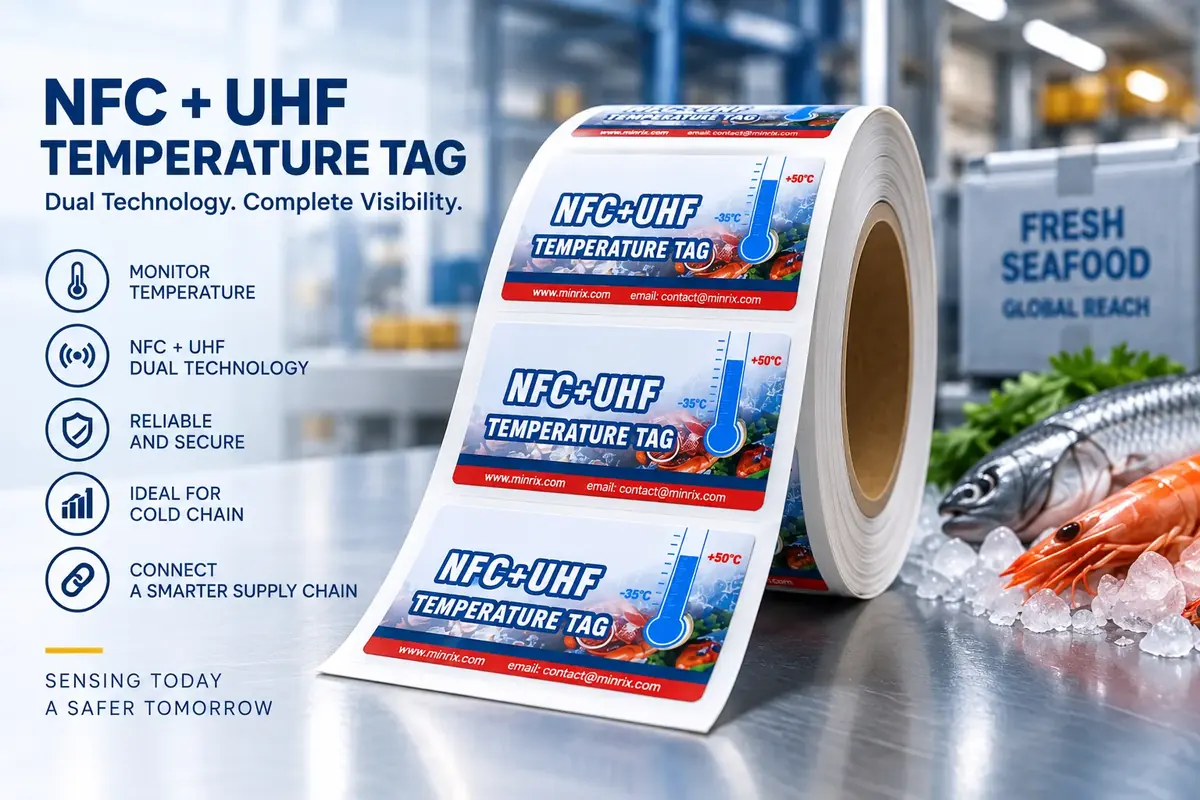

TechnologyPassive UHF RFID (no battery); Temperature Tag: NFC + UHFPassive UHF RFID (no battery) with high-brightness LED indicator
Air interfaceEPC Gen2v2 · ISO 18000-6CEPC Gen2 · ISO 18000-6C
MemoryEPC 128 bit · user 512 bitEPC / TID 96 bit · user 1312 bit
Read rangeUp to 14 mUp to 1.5 m
ProtectionIP54On request
Operating temperature−20 °C to +70 °C−35 °C to +85 °C
FormatsAny size to order, e.g. adhesive label 50 × 30 mm · hang-tag 80 × 20 mm · on-metal 60 × 40 mm · ruggedized 100 × 25 mm; secure (tamper-evident), NFC, windshield, test-tube, jewellery and embedded tagsAdhesive label 75 × 25 × 0.26 mm, PET face; printable front (logo, text, barcode, QR code)
EncodingEPC, lot and expiry; encoded to your scheme
Typical values; read range depends on reader, antenna and surface. Rows spanning both columns apply to both. Details per variant in the datasheets.
INTELLISTICKER SELECTOR
Not sure which label fits? Find it in 3 questions.
The best IntelliSticker for your goods, reader and conditions — or send your requirements to sales.

See IntelliSticker on your own lanes, or get the documents for your engineering team.

Book a demoRequest documents

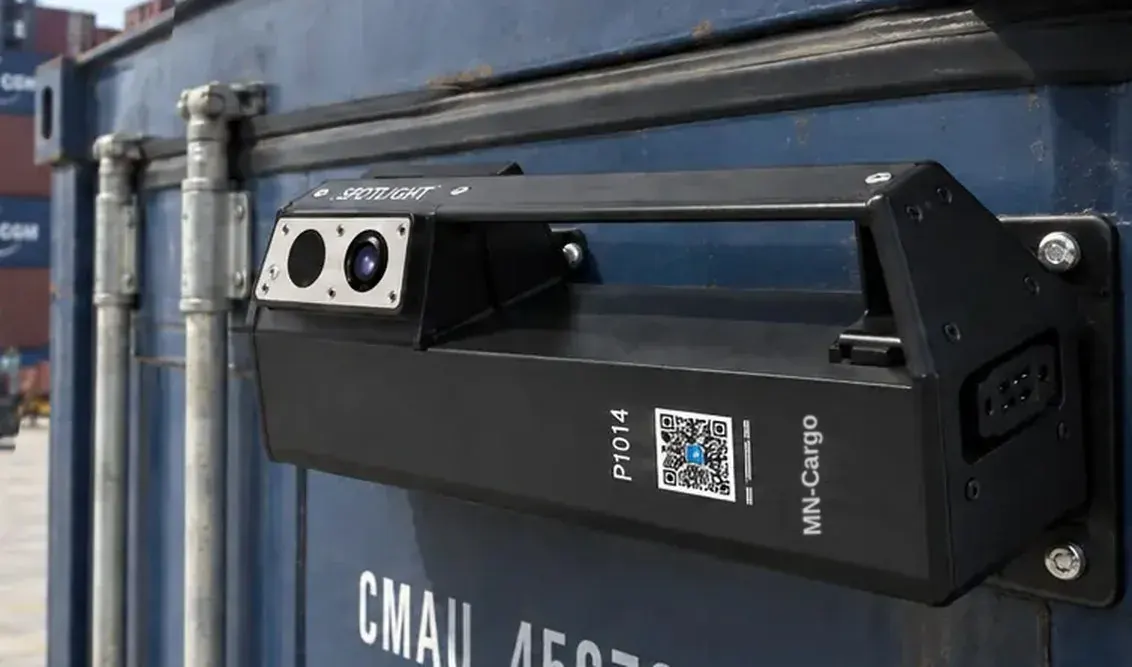

MN-Cargo — AI intelligent video terminal

A portable cargo-security video terminal that mounts directly on the container door and turns every box into a mobile sentinel. A 360° panoramic camera with on-device AI watches the cargo door and its surroundings; no wiring, installed in about 10 seconds, and it moves with the shipment from origin to destination.

AI video · 360°
What it reports

Camera recording or standby, AI events per day, door open or closed, a video clip for each event, unit ID and connection status.

360° panoramicOn-device AIClip per event
Installation

Door-mounted bracket, portable and reusable per shipment. Full datasheet on request.

No wiring~10 s deploy
Example event — Door opened · AI event recorded · 360° clip saved · Unit ID MN-Cargo · Connection online

Key facts

FeatureMN-Cargo
Camera360° panoramic camera with on-device AI
ReportsRecording or standby, AI events per day, door open or closed, a clip per event, unit ID, connection status
MountingDoor-mounted bracket, no wiring, about 10 s to deploy, reusable per shipment
Full specificationsIn the datasheet (on request)

See MN-Cargo on your own lanes, or get the documents for your engineering team.

Book a demoRequest documents

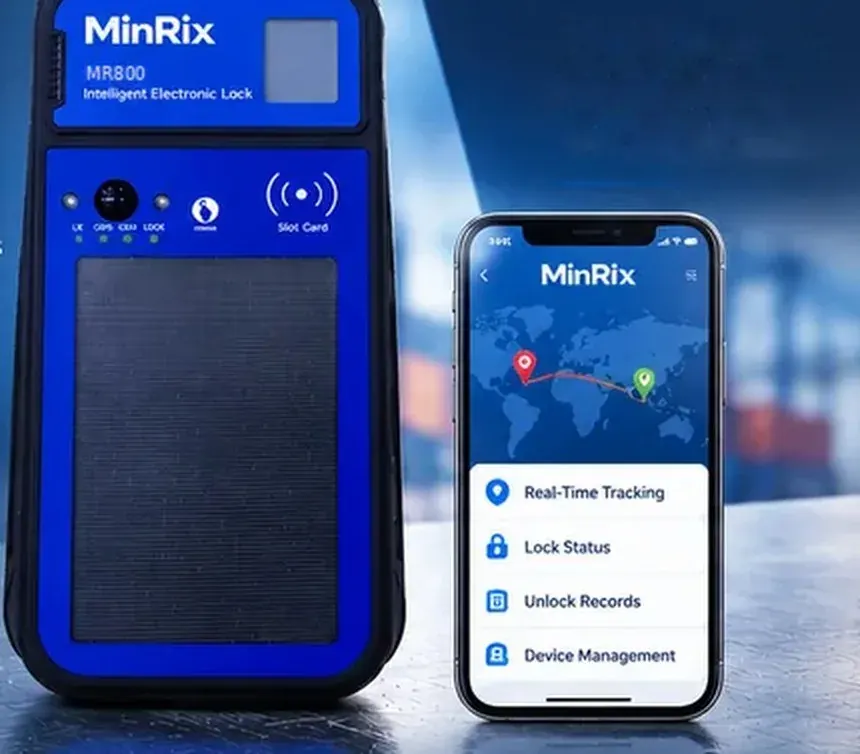

Electronic Lock

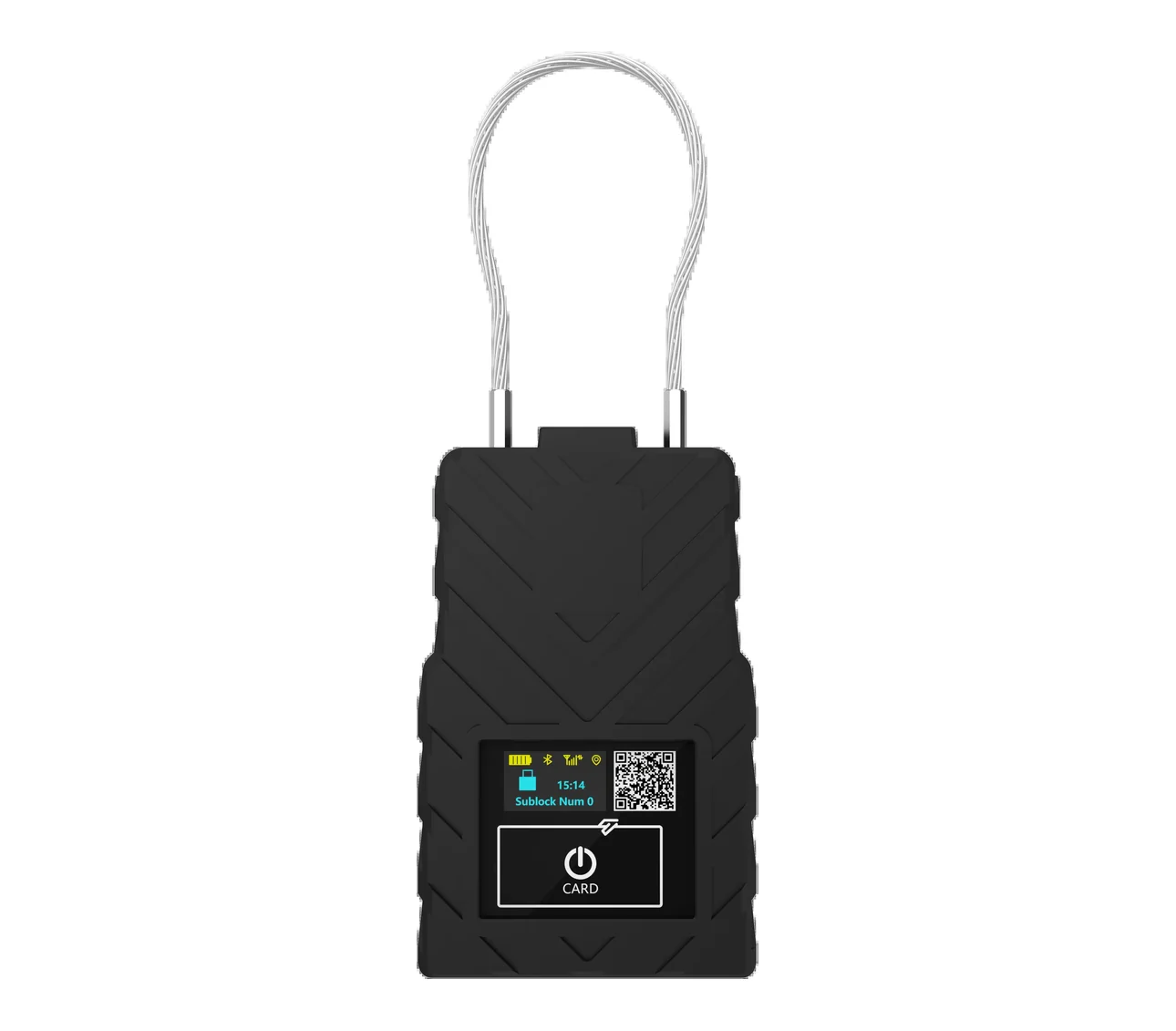

MinRix electronic locks secure the container door with a steel cable and report in real time. The MR800-N and MR800-P report over 4G with GPS/BeiDou positioning, and the MR800-P adds a touch keypad for password unsealing; the MR900 Video Smart Lock adds a 2 MP camera with live 4G video. Tamper detection raises instant alerts, and every unlock is recorded.

Containers · logistics · warehouse
Security & tracking

Tamper detection with live alerts. MR800-N / MR800-P: 4G, GPS/BeiDou and an OLED status display. MR900: 4G, GPS/BeiDou, live video and a snapshot or clip on every lock, unlock and tamper event.

Tamper alerts4G · GPS / BeiDou4G live videoLong-life battery
Unlock & records

Unseal by NFC card, fixed or handheld reader, the MinRix platform or the mobile app, which shows lock status and every unlock record; the MR800-P also by password on its touch keypad.

NFC cardPassword (MR800-P)PlatformMobile app

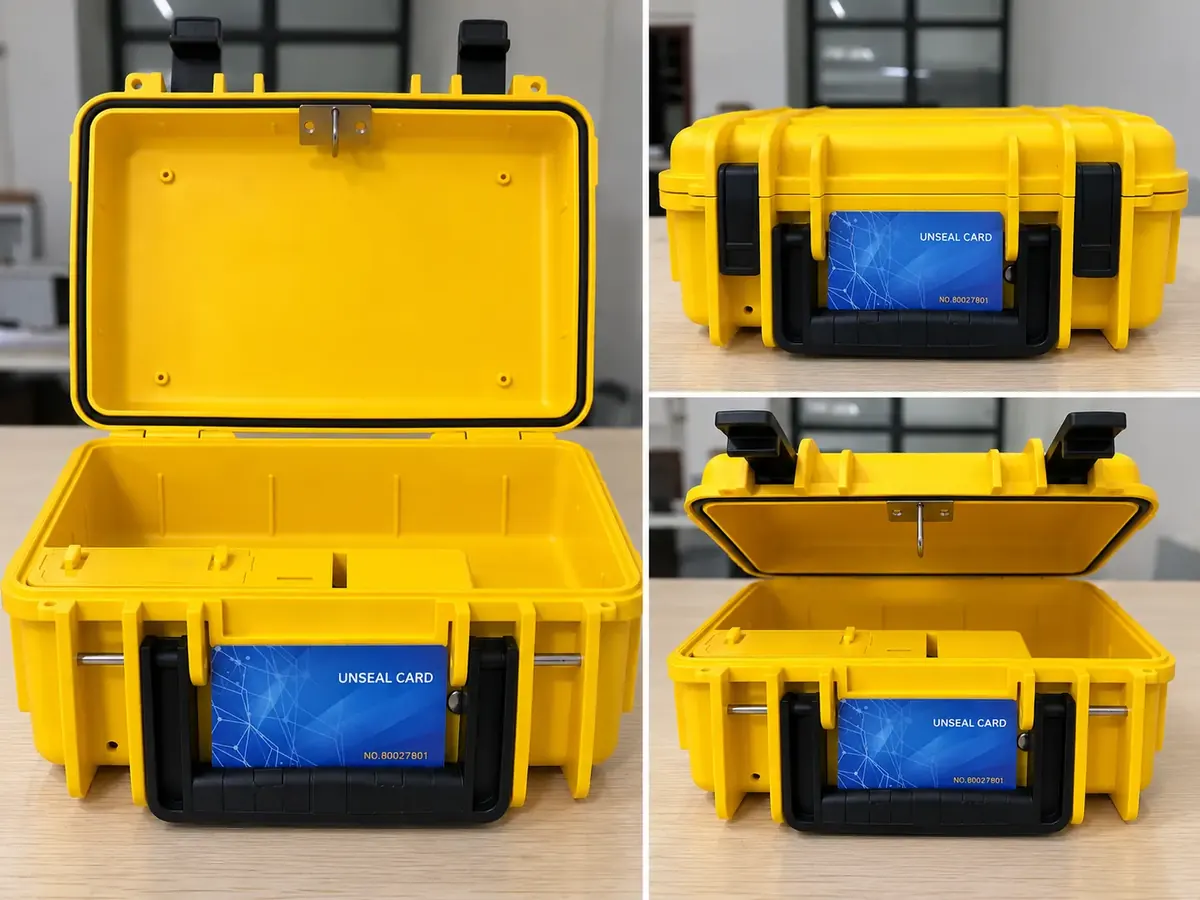

MR800-N cable lockMR800-P keypad lockMR900 video smart lockE-Seal with display & keypadNFC unseal cardUnlock records

Technical specifications

FeatureMR800-N / MR800-P Electronic LockMR900 Video Smart Lock
Communication4G (LTE) · Bluetooth 5.2
PositioningGPS / BeiDou, CEP ≤ 3 m
Camera / video—2 MP; live video (H.264); snapshot or clip on lock, unlock and tamper
UnsealingNFC card (ISO 14443A) · fixed or handheld reader · Bluetooth app · platform; MR800-P also password (touch keypad)NFC card (ISO 14443A) · fixed or handheld reader · app · platform
Tamper detectionBody tamper and cable cut, live alert
Lock cableØ 7 mm 304 stainless steel (Ø 4 mm optional), length to order; tensile strength > 200 kg when locked
Battery14,400 mAh lithium (12,600 mAh low-temperature option)
Battery life7 to 180 days, depending on reporting interval3 to 180 days, depending on reporting interval
Operating temperature−20 to +70 °C (−40 °C with low-temperature battery)
ProtectionIP67
Offline storageUp to 8,000 recordsUp to 8,000 records; TF card 8–512 GB optional
Rows spanning both columns apply to all three locks. Typical values from the datasheets; the binding configuration is confirmed in the MinRix quotation.
ELECTRONIC LOCK SELECTOR
Not sure which lock fits your cargo?
Filter and compare 33 MinRix e-locks, seals, trackers and controllers by application and features.

See the E-Lock (MR800-N / MR800-P / MR900) on your own lanes, or get the documents for your engineering team.

Book a demoRequest documents
// UNIFIED IoT PLATFORM

One view for IntelliSticker, MN-Cargo and E-Lock

The MinRix platform, AIOT Lock, brings together IntelliSticker reads, MN-Cargo door events and E-Lock events for a continuous chain of custody.

Built for IntelliSticker (UHF RFID), MN-Cargo (360° AI video) and E-Lock (4G · GPS / BeiDou).
AIOT Lock · MinRix platform
AIOT Lock, the MinRix platform: live map with the device list (IntelliSticker, MN-Cargo and E-Lock) and their online, offline, sleep and alarm status AIOT Lock, the MinRix platform: seal and unseal report with device, lock type, GPS time and position for every event

Real screenshots from AIOT Lock, the MinRix platform (demo account) · device IDs and user names masked

Container with GPS tracking
Real-time map & lanesroute adherence · dwell · ETA
MinRix IntelliSticker labels
Chain-of-custodyscan · pair · seal · verify
MinRix E-Lock MR800-P, front view
Tamper alerts & trackingtamper · 4G · GPS / BeiDou · unlock records

Control center

Monitor every shipment: position, tamper and door events, AI video clips and lock status.

Role-based access
Live position

Follow each container by 4G with GPS / BeiDou positioning from origin to destination port.

Tamper & door alerts

Instant alerts on lock tampering and door openings, with a 360° MN-Cargo clip for each AI event.

Lock control

Unseal the E-Lock by NFC card, reader, the platform or the mobile app (MR800-P also by password); every unlock is recorded.

IntelliSticker inventory

Associate item-level IntelliSticker with containers, orders and trips in seconds.

1Tag & pair at origin. Scan IntelliSticker, pair to MN-Cargo & E-Lock, start the trip.
2Monitor in route. Watch live telemetry and respond to anomalies and exceptions.
3Unlock & verify. Unseal by NFC card, platform or app at destination and read the labels to reconcile the cargo.

Built for operations & IT teams

Open APIs, secure by design and resilient at scale — from pilots to entire fleets.

99.98%
Platform uptime
42ms
API latency
8.6M
Events / day
ConnectorsCellular (4G) · UHF RFID · Video
ONLINE
Data modelTrips · Assets · Labels · Events · Locks
SYNCED
IntegrationsTMS / WMS / ERP / Customs
LIVE
Ingestion capacity92% headroom
JSON & CSV exportsREST & GraphQL APIsSSO & SAML
MN-Cargo AI video terminalsIntelliSticker UHF RFID labelsElectronic locks (E-Lock)
// ORIGIN → DESTINATION

Digitize every handover without slowing operations down

Deploy quickly with minimal process change: start by tagging high-value lanes and expand to every shipment as ROI is proven.

Onboarding teams in days, not months — backed by professional services and playbooks.
ORIGIN · Jebel Ali DESTINATION · Hamburg
OriginTag & pairIntelliSticker encoded
In transitLive telemetryMN-Cargo + E-Lock
Hub & customsException rulesFaster clearance
DestinationVerify & releaseProof of integrity
1

Tag and pair at origin

Encode IntelliSticker at packing, apply to cartons or pallets and associate with containers, MN-Cargo units and MR800-N / MR800-P locks using mobile devices or fixed portals.

RFID encoding stationGS1-compliant IDs
2

Monitor in-route telemetry

As containers move, MN-Cargo and the electronic lock feed door and lock events into the MinRix platform, which links them to the IntelliSticker items and trip plan.

Exception-based monitoringSmart thresholds
3

Verified arrival and release

Destination teams see expected pallets, unlock windows and conditions before opening the door, then verify items with a single RFID scan.

Electronic proof of integrityClaims in minutes
// SEE IT ON YOUR LANES

See MN-Cargo, E-Lock and IntelliSticker on your own lanes

Share a lane or project you are considering. We'll map the right mix of IntelliSticker, MN-Cargo and E-Lock, then walk you through a concrete roll-out plan with ROI estimates.

No obligation, no hard sell. A typical session runs 20–30 minutes with your operations and IT stakeholders.

Ready to get started?

Submit your details and our IoT solutions team will get back to you within 18 business hours.

We reply within 18 business hours (Mon–Fri, Dubai time). Your information is never shared.
